PVD Vacuum Coating Machine Manufacturer

Industrial PVD Coating Machines built for production — tool, decorative & DLC.

Cathodic-arc & magnetron-sputtering coating equipment — 20+ years' know-how, factory-direct, OEM, shipped worldwide.

20+ years experience Factory direct & OEM Turnkey & in-line lines Installation & training
Request a Quote Chat on WhatsApp

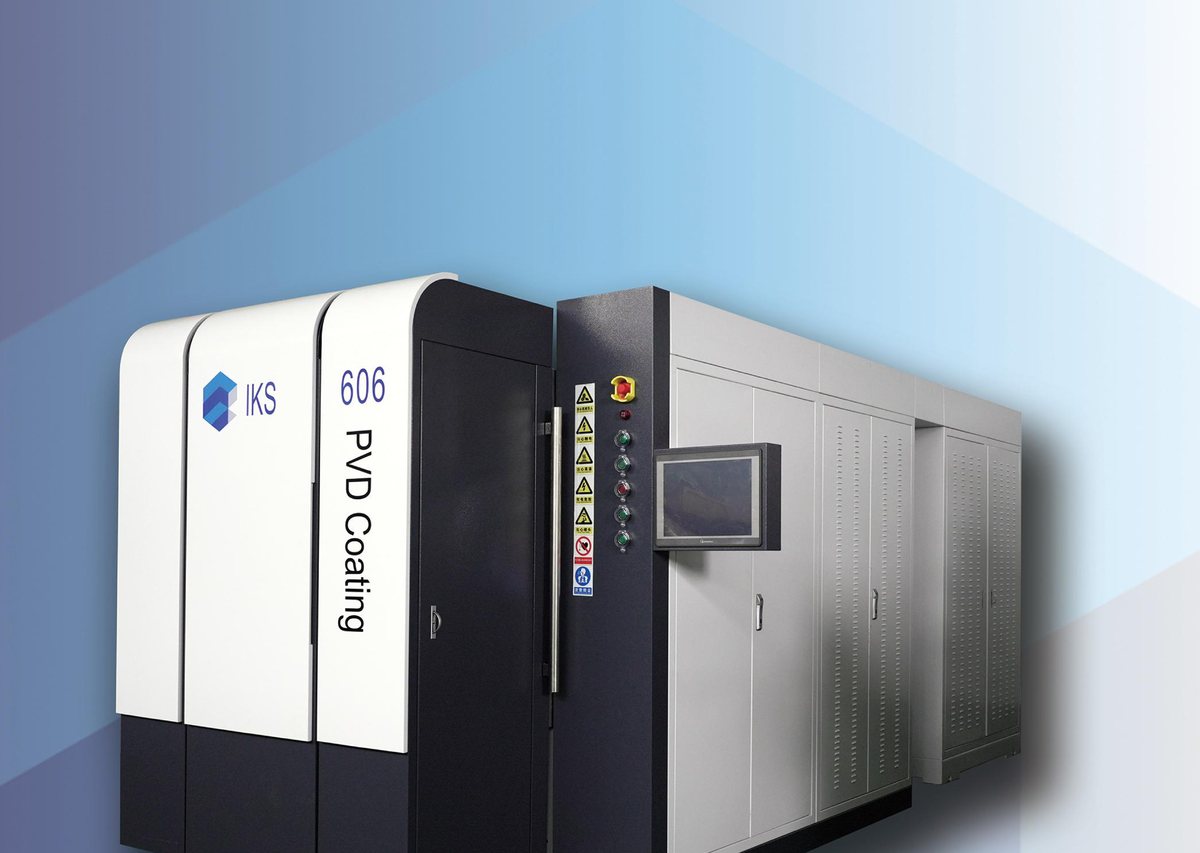

IKS PVD 606 vacuum coating machine — industrial PVD coating equipment
3 Core machine series
Tool · Decorative · DLC
20+
Years in PVD technology
3+
Machine series & custom models
15+
Standard IP coating colors
CN+SG
China & Singapore presence

Equipment & coatings trusted across the supply chains of

Partners and clients: Foxconn, Huawei, Samsung, Xiaomi, Vivo, Supor and more
Our Machines

Three PVD coating machine series — pick the one that matches your parts

Tell us the workpiece — we recommend the chamber, sources and recipe.

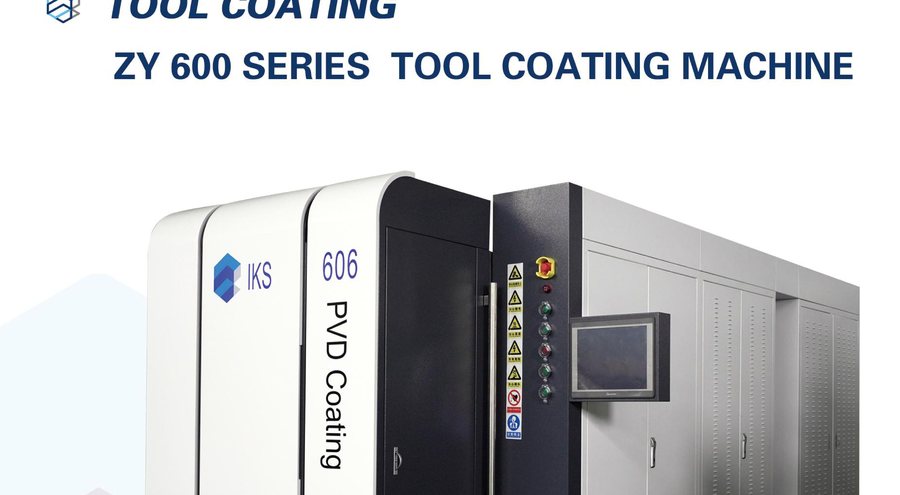

ZY-600 series PVD tool coating machine
Tool Coating

ZY-600 Series

Cathodic Arc (IET + Arc) · TiAlN / AlCrN / TiSiN
  • Chamber Ø800–Ø980 × H650–900 mm
  • 9–12 arc sources, load up to 800 kg
  • For end mills, drills, taps, inserts, hobs & molds
View specs Get quote

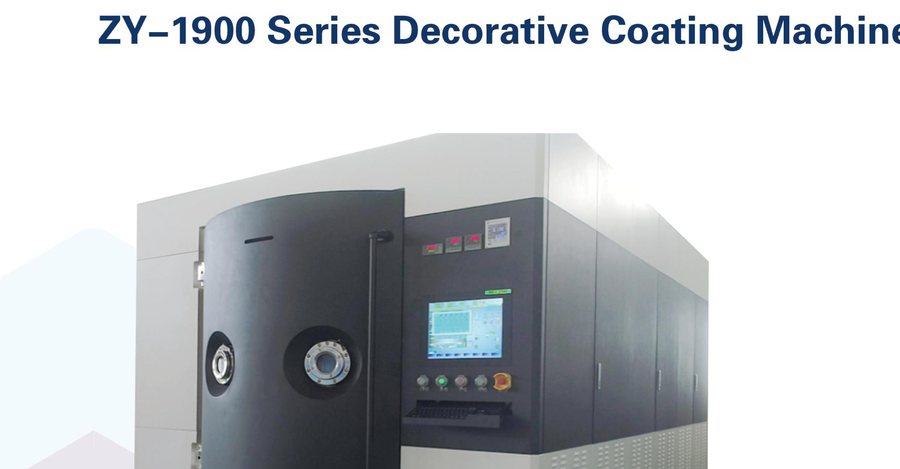

ZY-1900 series decorative PVD coating machine
Decorative Coating

ZY-1900 Series

Arc + MF Magnetron Sputtering · IP colors
  • Chamber Ø800–Ø1720 × H900–1200 mm
  • 15+ colors: gold, rose gold, black, gun, blue…
  • For watches, jewelry, faucets, phones, hardware
View specs Get quote

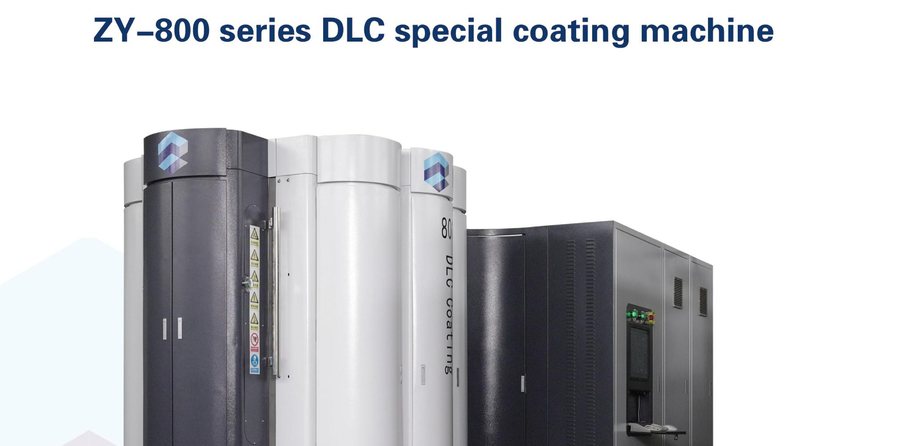

ZY-800 series DLC functional PVD coating machine
DLC / Functional Coating

ZY-800 Series

Magnetron Sputtering + Ion Beam / PACVD
  • Diamond-like carbon, 2200–2600 HV
  • Low friction (0.1–0.2), film > 3 µm, grade-1 adhesion
  • For engine parts, molds, medical, textile, bearings
View specs Get quote

Need a different size? We build custom chambers and complete recipes for tools, decorative parts and DLC — plus turnkey & in-line production lines.

Technical Specifications

Model parameters, in plain numbers

Standard configurations below — chamber, sources and turntable load can be tailored to your throughput.

Item / ModelZY-606ZY-609 (Rectilinear Arc)ZY-612
Coating effective zoneØ800 × H650 mmØ570 × H650 mmØ980 × H900 mm
Applied technologyIET + ArcIET + ArcIET + Arc
Number of arc sources96–1212
Coating speciesAlCrN, TiAlN, TiSiN, etc.
Production cycle8–10 h6–8 h8–10 h
Rotating rods12 × Ø1508 × Ø15012 × Ø150
Standard turntable load500 kg300 kg800 kg
Range of applicationAll tools & moldsHobs, milling cutters, insertsMolds & accessories

Custom tool-coating recipes available on demand: TiN, TiCN, AlTiN, CrN, TiSiN, AlCrN, DLC and more — matched to substrate, operating temperature and target color.

Item / ModelZY-1212ZY-1413ZY-1515ZY-1613ZY-1913
Coating effective zoneØ800×H900Ø1250×H1000Ø1250×H1200Ø1520×H1000Ø1720×H1000
Applied technologyStandard: Small Arc + Medium-Frequency Sputtering · Options: Planar DC magnetron, ion source, AF
MF magnetron4 pairs4 pairs2 pairs6 pairs6 pairs
Arc sources1010111010
Production cycle1–3 h1–3 h1–2 h1–3 h1–3 h
Rotating rods11×Ø15018×Ø1609×Ø30022×Ø17025×Ø170
ApplicationWatches, glasses, jewelryGeneral décorBathroom / sanitaryPhones, 3C, hardwareLarge décor

Available IP colors: gold, rose gold, champagne gold, titanium, IPS, gray, gun, coffee, blue, dark blue, purple, red, green, rainbow and black.

Item / ModelZY-800ZY-801ZY-802
Coating effective zoneØ1060 × H750 mmØ800 × H800 mmØ900 × H1500 mm
Applied technologyMagnetron Sputtering + Ion beamMagnetron Sputtering + PACVDMagnetron Sputtering + PACVD
Magnetron cathode length850 mm1020 mm1680 mm
Production cycle13–15 h8–10 h8–10 h
Rotating rods12 × Ø15012 × Ø15012 × Ø150
Standard turntable load500 kg400 kg800 kg
Range of applicationMolds, mold accessories, textile, medical, 3C and moving parts needing hardness & low friction

DLC performance: coating thickness up to 3 µm+, grade-1 adhesion, hardness 2200–2600 HV, dry friction coefficient 0.1–0.2.

Applications

What our machines coat every day

The parts our customers run on IKS PVD equipment every day.

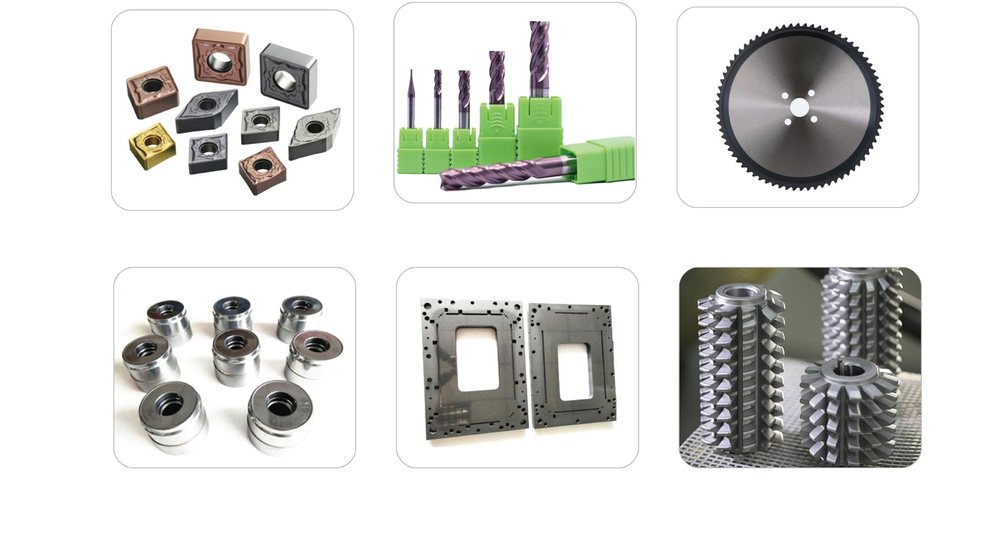

PVD-coated cutting tools, inserts, drills, saw blades and molds

Cutting tools & molds

Inserts, end mills, drills, taps, hobs, saw blades, stamping & injection molds — longer life, less sticking.

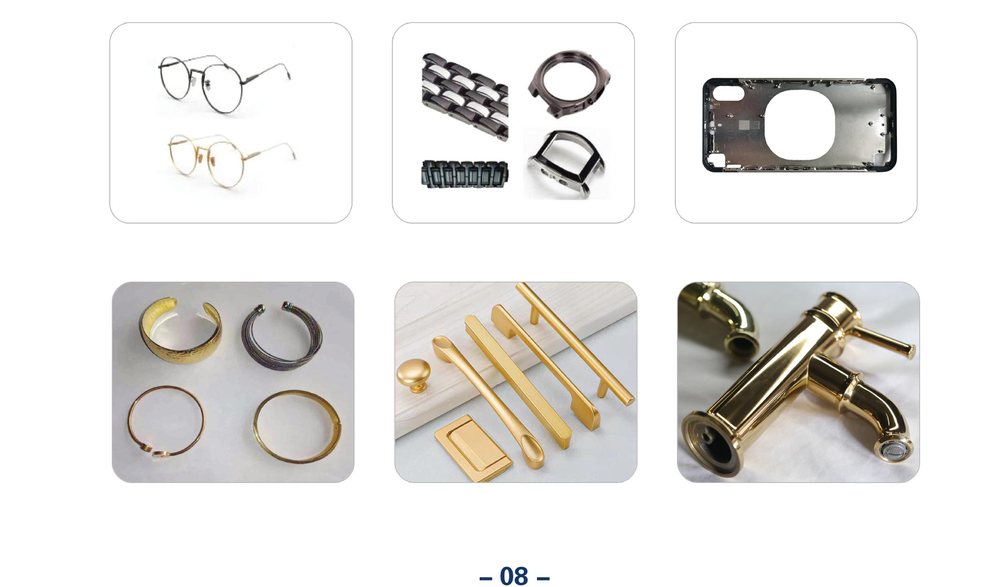

PVD decorative coating on jewelry, watches, faucets and hardware

Decorative & sanitary

Watches, jewelry, eyewear, faucets, door handles, showers — durable gold, rose-gold, black & gun finishes.

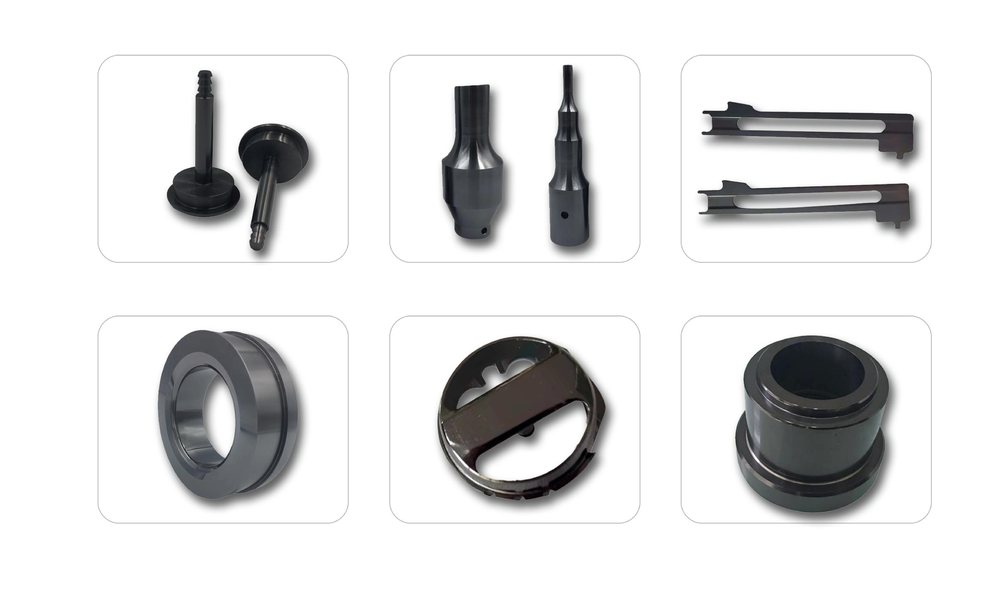

DLC coating on engine parts, bearings and precision components

DLC functional parts

Engine components, bearings, sewing-machine rotary hooks, dies and medical parts needing ultra-low friction.

Cutting toolsMolds & diesHardwareWatches & clocks JewelryFaucets & sanitaryMobile & 3CElectronics AutomotiveAerospaceMedicalTextilePhotovoltaic
Decorative IP Colors

15+ production colors, repeatable batch to batch

Our decorative machines deliver a thin, hard, corrosion-resistant film with a high-end metallic finish that won't flake — even bent past 90°. Colors are matched to LAB reference values and verified with a colorimeter and light box.

Discuss a color program

IP Gold
Rose Gold
Champagne
Titanium
IPS Silver
Gray
Gun
Coffee
Blue
Dark Blue
Purple
Red
Green
Rainbow
Black
Why PVD

Why buyers move from plating & spraying to PVD

A clean, dry vacuum process — harder, greener and longer-lasting than plating or spray.

Hard & wear-resistant

Films like TiAlN and DLC reach 2200–2600 HV — far harder than electroplating, resisting scratches and abrasion.

Eco-friendly

No heavy-metal wastewater, no chrome or nickel discharge. A dry process that meets modern environmental standards.

Strong adhesion

The film bonds tightly to the substrate — it won't peel even when the part is bent past 90°, so finishes last.

Premium metallic look

High brightness without hiding substrate finish — uniform, fine color that lifts perceived product value.

ProcessHardness / wearEnvironmentalAdhesionTypical use
PVD (this equipment)Very highClean, no wastewaterExcellentTools, watches, faucets, 3C, molds
ElectroplatingLow–medium (soft)Heavy-metal wastewaterMediumABS plastic, cheap hardware
Spray / powder coatLowVOC / paint wasteWeak over timeAppliance shells, furniture
AnodizingHigh (aluminium only)ModerateExcellentAluminium cases & profiles
Beyond single machines

Turnkey projects & in-line production lines

Not sure how to set up a coating shop? We deliver the full process — equipment, layout, recipes and training.

Turnkey PVD coating line auxiliary equipment: sand-blasting, chiller, cleaning line

Turnkey coating project

A complete decorative or functional coating production project, built around your products and volume.

  • Sand-blasting, ultrasonic cleaning line & chiller
  • Coating machine sized to your throughput
  • Process recipe development & on-site training
  • Inspection, hanging & unloading workflow

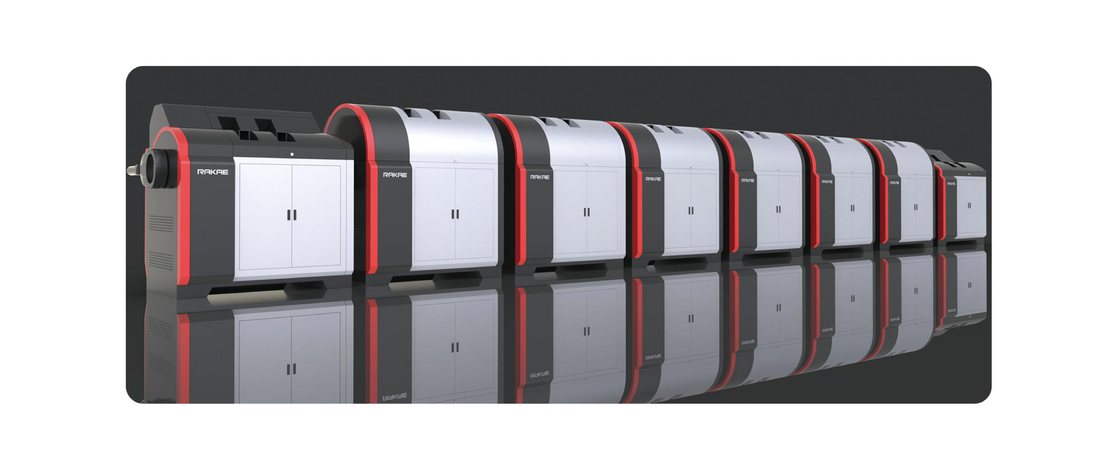

In-line continuous PVD coating production line

In-line continuous line

Automated, near-unmanned PVD production: load → clean → coat → inspect → unload, linked end to end.

  • Automatic loading, cleaning & access to vacuum chamber
  • Intelligent continuous PVD coating
  • Visual inspection & automatic unloading
  • Higher output with consistent, repeatable quality
Quality & Testing

Every coating is measured, not guessed

We hand over machines with the test methods that prove the coating — so you can guarantee color, hardness and adhesion to your own customers.

Colorimeter & light box (color match to LAB)
Nano-hardness measurement
Coating thickness measurement
Adhesion test (scratch / bend)
Salt-spray corrosion test
Friction & vibration wear testing
Industrial microscope inspection
Touch-screen control with batch data logs

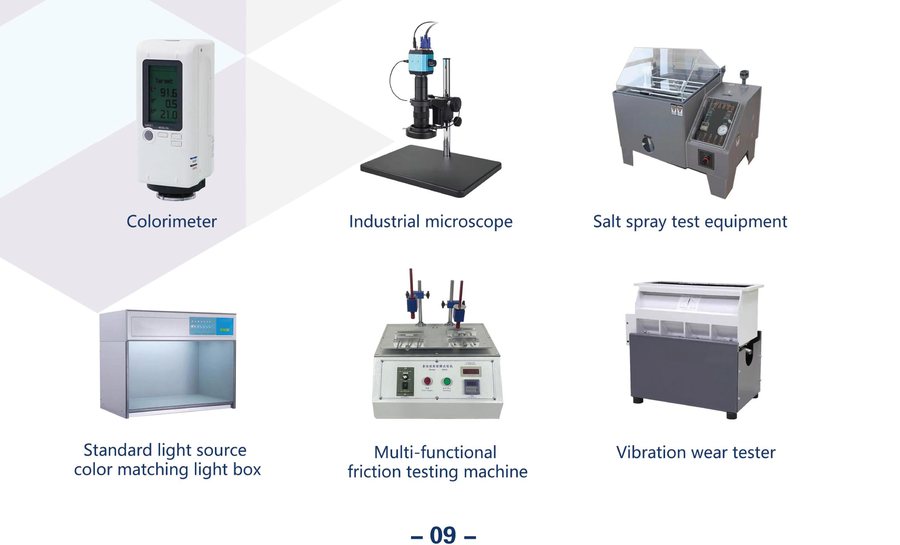

PVD quality control and testing equipment: colorimeter, microscope, salt-spray and friction testers
Ordering & Export

From inquiry to a running machine — what to expect

Years of worldwide shipping, with a Singapore office for support. A typical project runs like this:

1

Tell us your parts

Share workpiece, material, target coating/color and monthly volume. We recommend the model.

2

Quote & sample

You receive price, lead time and specs — coating trials on your samples where needed.

3

Build & FAT

Machine manufactured, tested and crated in export-grade plywood / fumigation-free packaging.

4

Install & train

Installation guidance, recipe commissioning and operator training — on-site or online.

FAQ

Questions buyers ask before ordering

Which machine do I need?
It depends on your parts. Cutting tools & molds → ZY-600 tool coating. Watches, jewelry, faucets, phone/3C in color → ZY-1900 decorative. Low-friction, ultra-hard DLC on engine/medical/mold parts → ZY-800. Send us your workpiece and we'll recommend the exact model and chamber size.
Do you support OEM and custom chamber sizes?
Yes. Beyond standard models we build custom chambers, source configurations and complete coating recipes for tools, decorative parts and DLC. We also deliver turnkey shops and automated in-line production lines.
Can you develop the coating recipe and color for my product?
Yes. We develop recipes on demand — TiN, TiCN, AlTiN, CrN, TiSiN, AlCrN, DLC and 15+ decorative IP colors matched to LAB reference values, tuned to your substrate and operating temperature.
What about installation, training and after-sales?
We provide installation guidance, recipe commissioning and operator training (on-site or online), plus ongoing technical support. A Singapore presence helps us support international customers.
How is the machine packed and shipped?
Machines are tested before dispatch and crated in export-grade, fumigation-free packaging for sea freight. We support major Incoterms and worldwide delivery.
Why PVD instead of electroplating or spraying?
PVD gives a much harder, better-adhering, corrosion-resistant film with a premium metallic finish — and it's a clean, dry process with no heavy-metal wastewater. That's why premium tools, watches, faucets and 3C parts have shifted to PVD.
